CUT WHEELS AND PINIONS

FOR AN 8 DAY LONGCASE CLOCK

by ALAN TIMMINS

Wheels to be crossed out / Pinions supplied on stubs to be cut off

and fitted to arbor, 1/2/3 or 4 pinions on one stub  PHOTO

Cutters Module 0.85, 0.8, 0.75

As a result of interest shown by friends, I decided to describe and photograph the making of a typical Longcase movement made in about 1790, which came into my workshop for restoration. I shall describe and clearly illustrate every stage of the project so that anybody with a reasonable knowledge of engineering, and a workshop equipped with the usual range of hand tools, a small lathe, a drilling machine and possibly either horizontal or vertical milling machine, or the accessories to carry out this on a lathe, will be able to complete the project without to much difficulty.                Alan Timmins

 ALL PRICES PLUS POSTAGE & PACKING

wheels and pinions are made to order

ITEM

     p

Going Train
Great Wheel                                    24.  00
Centre Wheel                                  15.  00
Third Wheel                                     15.  00
Escape Wheel                                    17.  00
Hour Wheel                                      15.  00

Minute & Reverse  Minute Wheels /2

15.  00
Barrel Ratchet                                23.  50

Date Flag Wheel

15.  00
Date Collar Wheel                            18.  00
Strike Train
Great Wheel                                    24.  00
Pin Wheel                                         15.  00
Pallet Wheel                                     15.  00
Warning Wheel                                15.  00
Barrel Ratchet 23.  50

Centre, Third & Pin Pinions /3 (8 Leaf)

25.  50

Escape, Pallet, Fly & Warning Pinions /4

30.  00
Motion Pinion (6 Leaf)                    13.  50
Alan Timmins Book  Soft Back       26. 95
Pallet Forging 10. 75
Hammer Spring 13. 50
   Back To Home Page

ORDER FORM

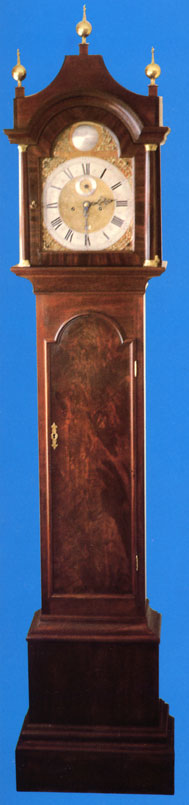

Photo by kind permission

 of  Mr A Timmins



Please verify prices before ordering as prices can fluctuate due to market forces
