CUT WHEELS & PINIONS FOR

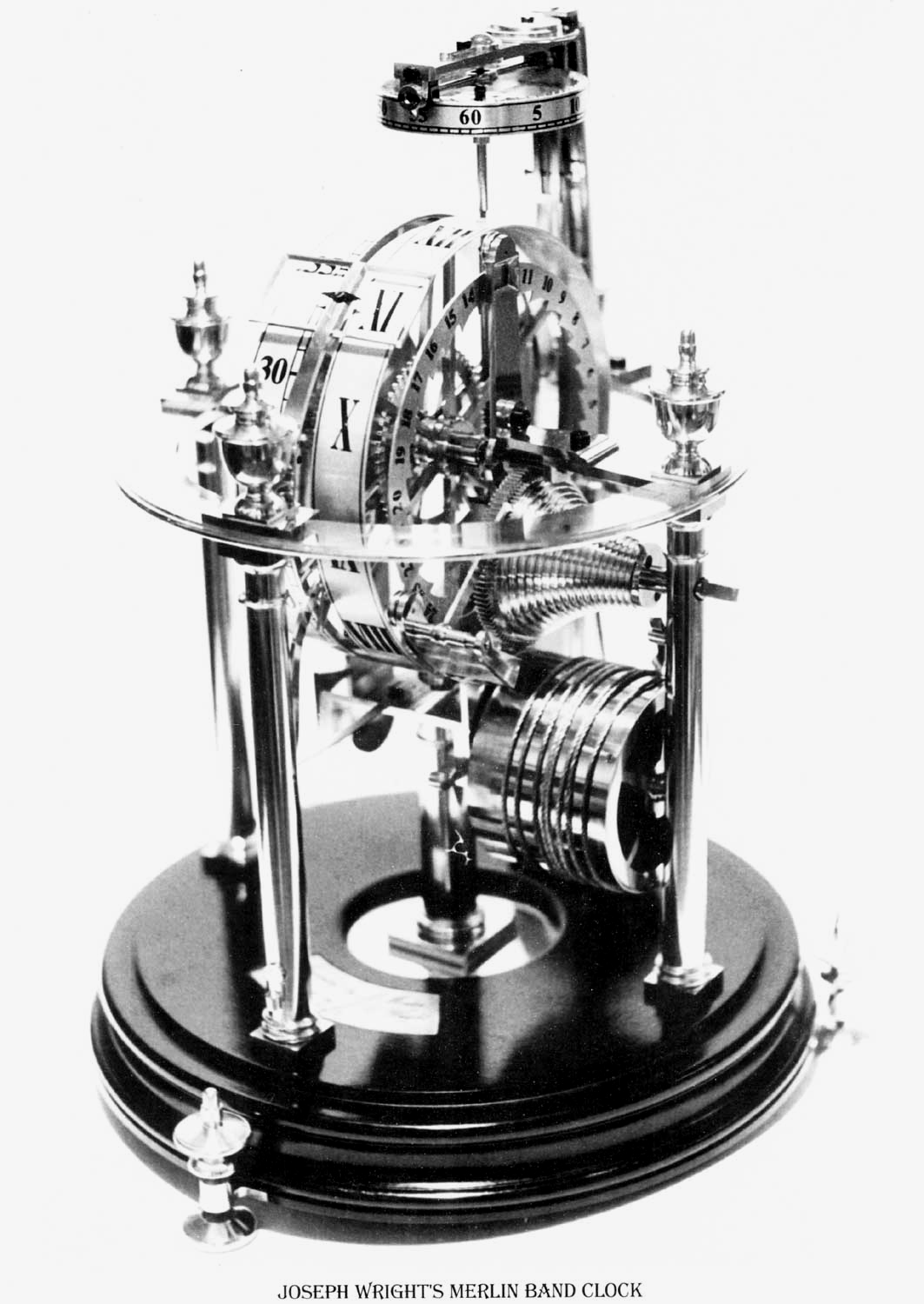

JOSEPH MERLIN BAND CLOCK
by J. G. WRIGHT
Wheels to be crossed out / Pinions supplied
on stubs to be cut off and fitted to arbor
1/2/3 or
4 pinions on one stub PHOTO
ALL PRICES PLUS POSTAGE
& PACKING
This most unusual and complicated clock is not for the
in-experienced clockmaker. The construction includes the machining of a worm
of 8 threads per inch, and the usual dial is replaced by rotating bands. These
are rolled from brass strip. However full details are supplied by the author
for all this work and it is because the description is so good that I am
republishing this book. Not only is the actual construction of the clock fully
described but also the making of the special tools and jigs required. A
description of the bending rolls needed for making the bands is given together
with setting up the lathe for wheelcutting. This workshop manual is a
comprehensive description on how to make a most interesting clock.
J Wilding & Rite Time Publishing
There are 72 pages and over 130 drawings
and photographs.
Cutters Module 1.0, 0.6
Back To Home Page
|
|
£ p |
|
PRICES TO BE ANNOUNCED
|
|
| BOOK |
30. 00 |
| MAINSPRING |
33. 00 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
Back To Clock Construction Books
ORDER FORM
Click to enlarge
ALL PRICES SUBJECT TO CHANGE
WITHOUT NOTICE
